EMI Shielding Products & Coating Services

Six product families covering conductive substrates, foil, carbon-based materials, tapes and functional coatings. Every line can be adjusted to your target resistance, thickness and durability — specification by specification, not catalogue by catalogue.

About the data below: values shown are typical capabilities of our coating and laminating lines. Because most orders are developed to customer specification, final figures — surface resistance, thickness, adhesion, shielding effectiveness — are confirmed in the technical data sheet issued with your quotation. Send us your target and we will tell you honestly whether we can hit it.

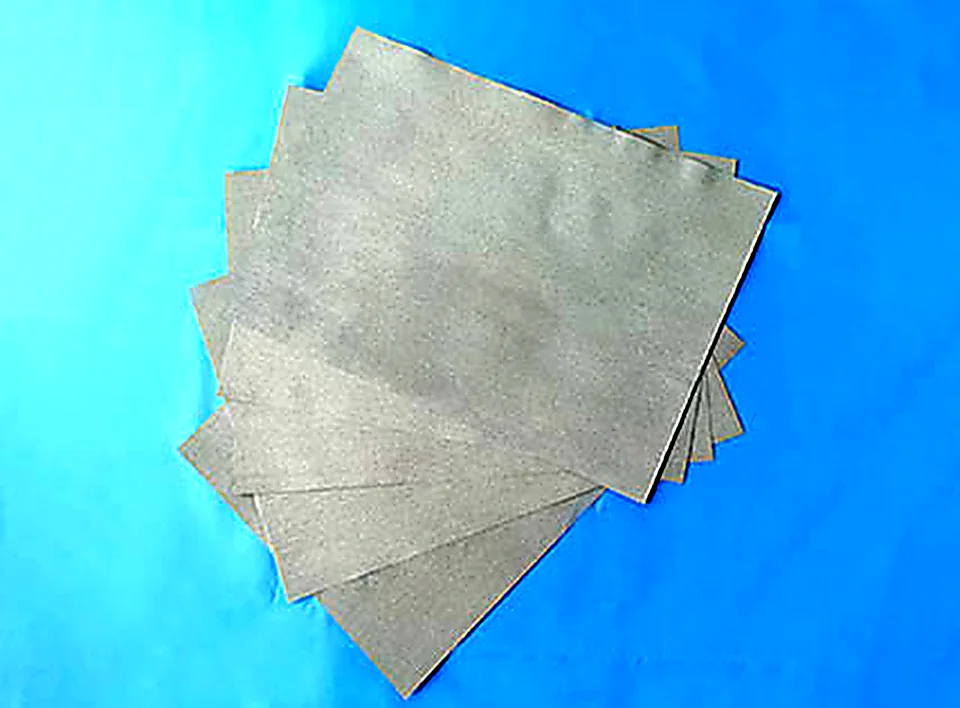

Double-sided grey flame-retardant conductive cloth

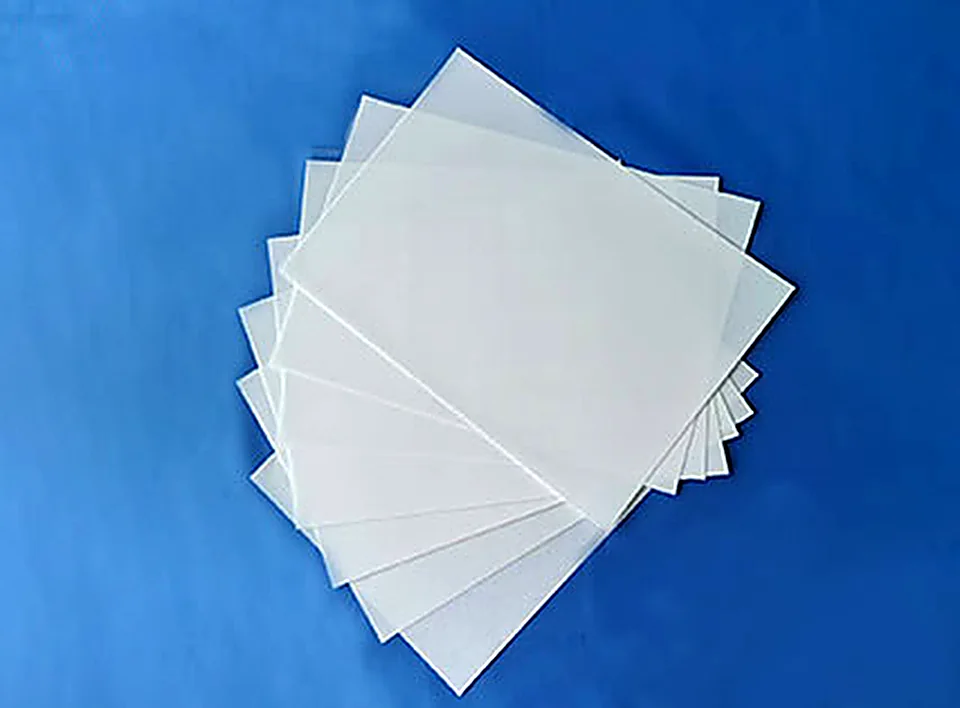

Double-sided white flame-retardant conductive cloth

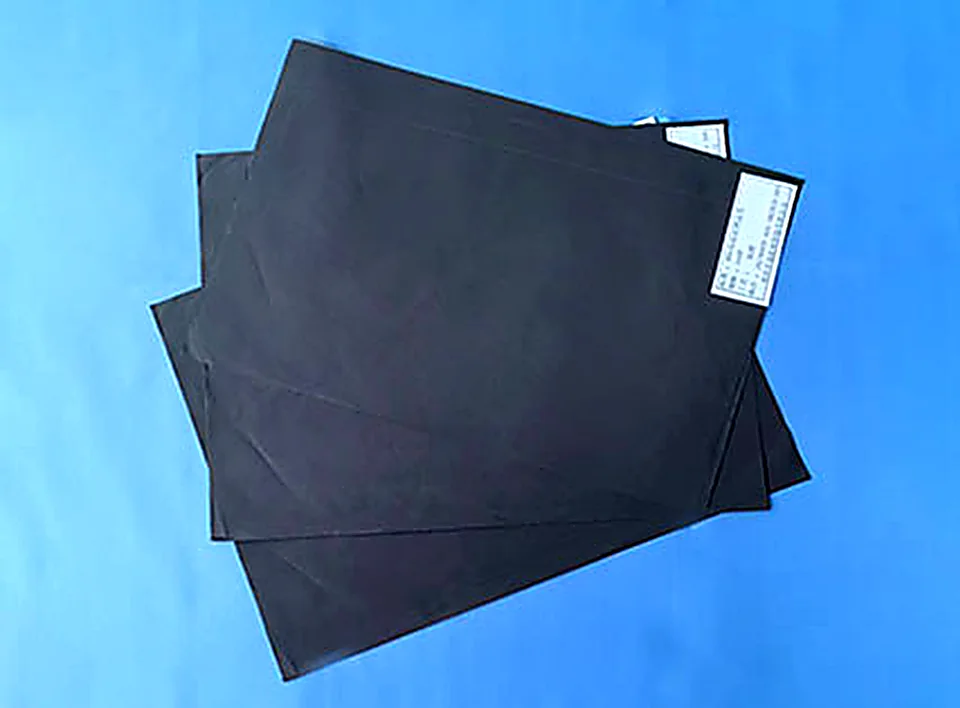

Double-sided black flame-retardant conductive cloth

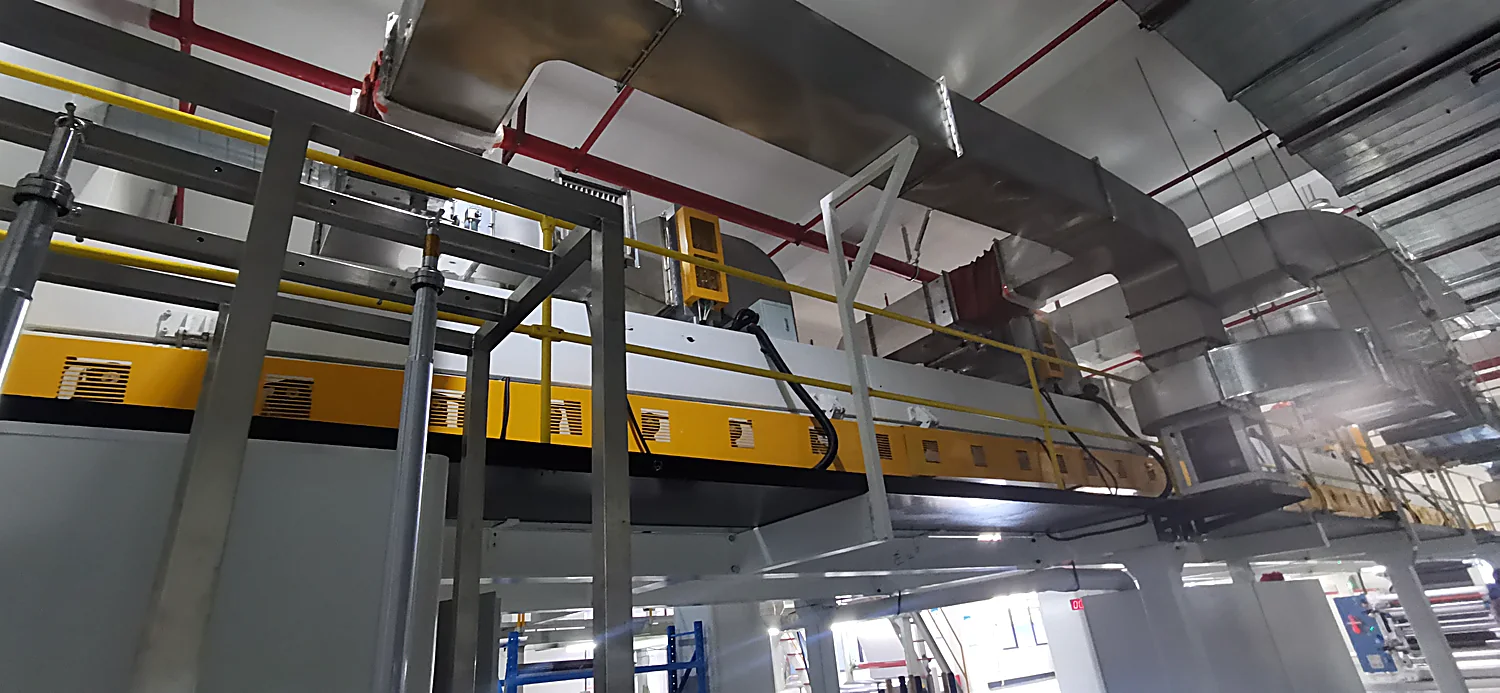

Roll-to-roll coating machine running a water-based conductive coating at the Shengtong plant
01

Conductive Coating Service (Toll Coating)

We coat conductive, flame-retardant and functional layers onto conductive fabric, non-woven, copper foil, aluminium foil and PET film. Formulations are made in-house as pure water-based systems, so adhesion, flexibility and coating weight are controlled together rather than traded off against each other.

  • SubstratesConductive fabric, non-woven, Cu foil, Al foil, PET
  • ResistanceDown to ≤ 50 mΩ/sq, to your target
  • CoatingIn-house water-based, custom thickness
  • OptionsAlcohol & abrasion resistance, low release force, high-temp, anti-fingerprint
  • FormatRoll, sheet, slit width to drawing

Applications: EMI gaskets, cable wrap, grounding layers, flexible circuits, die-cut shielding parts.

Get Free Sample

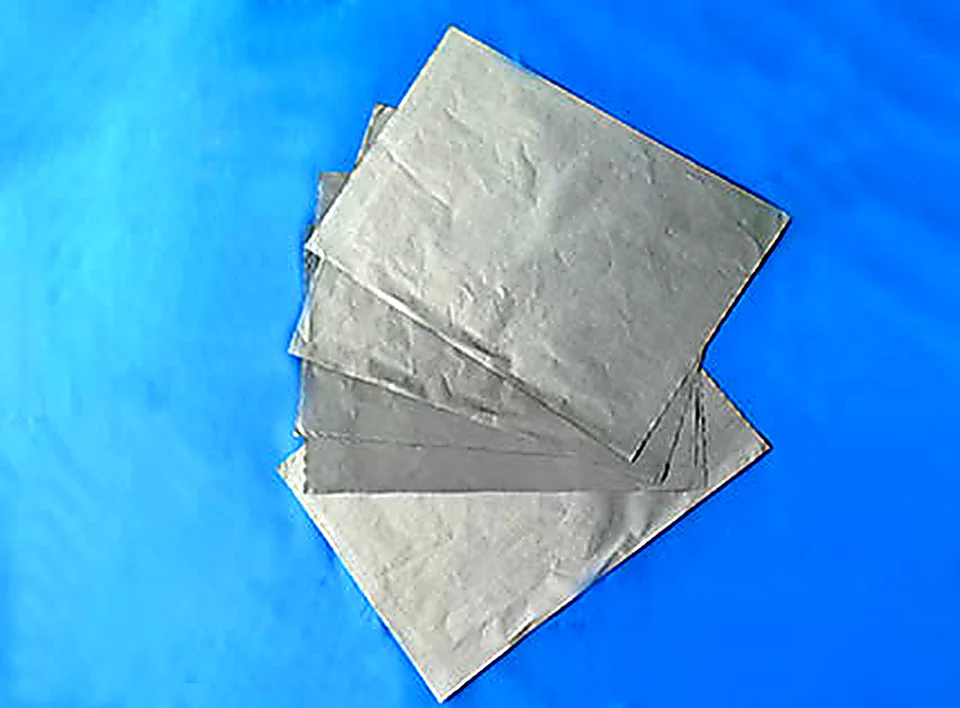

Grey anti-oxidation conductive fabric supplied in sheets and rolls by Shengtong New Materials
02

Conductive Fabric

Metal-plated and carbon-coated textiles built for shielding layers that still have to move, fold and compress. Our water-based topcoat protects the conductive layer so resistance stays stable through handling, humidity exposure and repeated flexing.

  • Base fabricPolyester, nylon and other wovens
  • Conductive layerCopper / nickel, silver or carbon systems
  • Resistance≤ 50 mΩ/sq available, customised
  • DurabilityAbrasion, alcohol, anti-fingerprint options
  • FormatsRolls, slit rolls, sheets, die-cut parts

Applications: Shielding gaskets and wraps, EMI clothing and enclosures, cable shielding, grounding cloth, equipment linings.

Get Free Sample

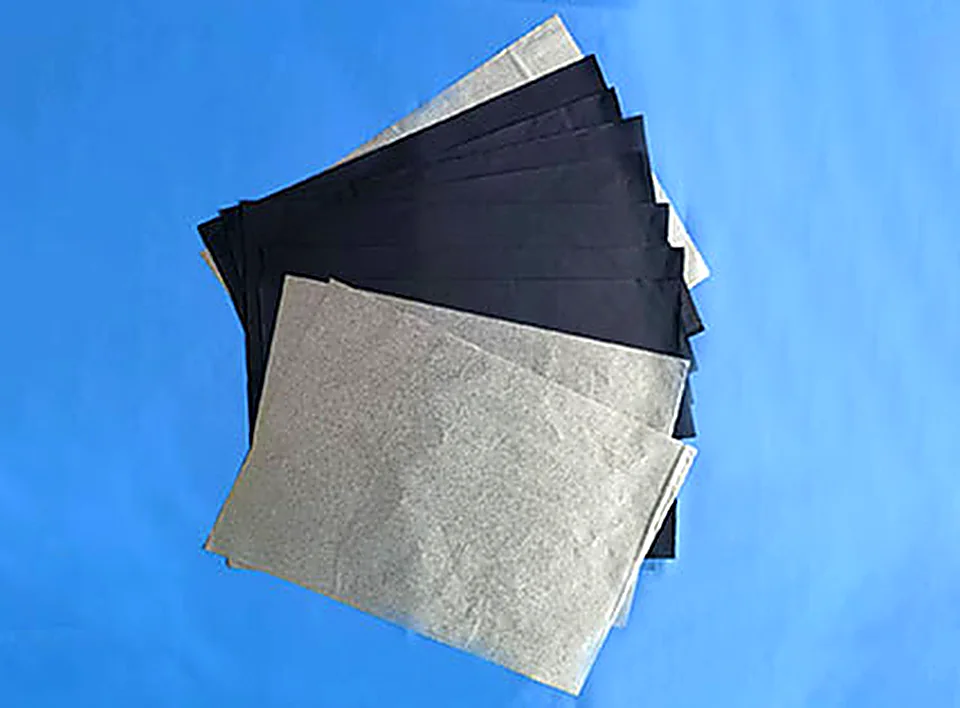

Single-sided insulating conductive non-woven fabric with black coated and white conductive faces
03

Conductive Non-woven Fabric

Where weight, softness and compressibility decide the material, non-woven wins. We apply conductive or flame-retardant coatings to non-woven substrates for cushioning gaskets, gap fillers and lightweight shielding layers.

  • SubstrateNon-woven, various basis weights
  • CoatingConductive or flame-retardant, water-based
  • ResistanceCustomised to application target
  • PropertiesConformable, compressible, low lint
  • ExtrasAdhesive backing, lamination, die-cutting

Applications: Cushion gaskets, enclosure seam filling, battery pack insulation layers, automotive interior shielding, HVAC and appliance EMC.

Get Free Sample

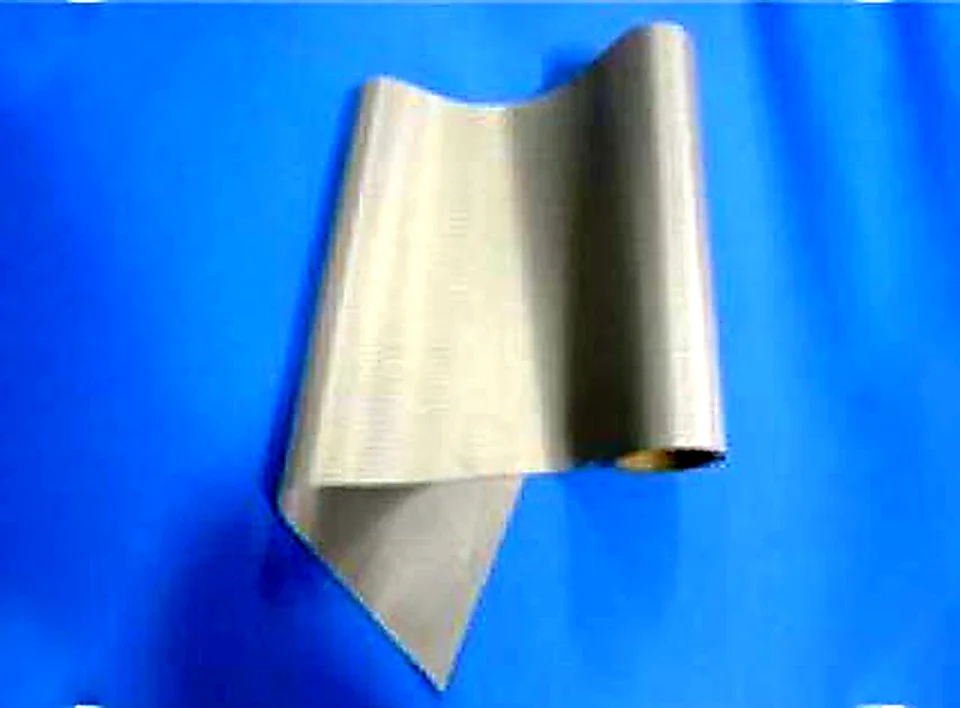

Aluminium foil mylar laminate used for grounding and high-frequency EMI shielding
04

Copper Foil & Aluminium Foil

Coated and laminated foil materials for grounding, reflection and high-frequency shielding. We supply bare, coated and adhesive-backed constructions, slit to your width so you can run them straight onto your line.

  • MaterialsCopper foil, aluminium foil, laminates
  • ThicknessCustomised to drawing
  • CoatingConductive, anti-oxidation, flame-retardant
  • AdhesiveConductive or non-conductive acrylic
  • FormatRolls, slit widths, sheets, die-cut

Applications: Transformer and inductor shielding, cable and harness wrap, PCB grounding, RF module shielding, EMI cabinets.

Get Free Sample

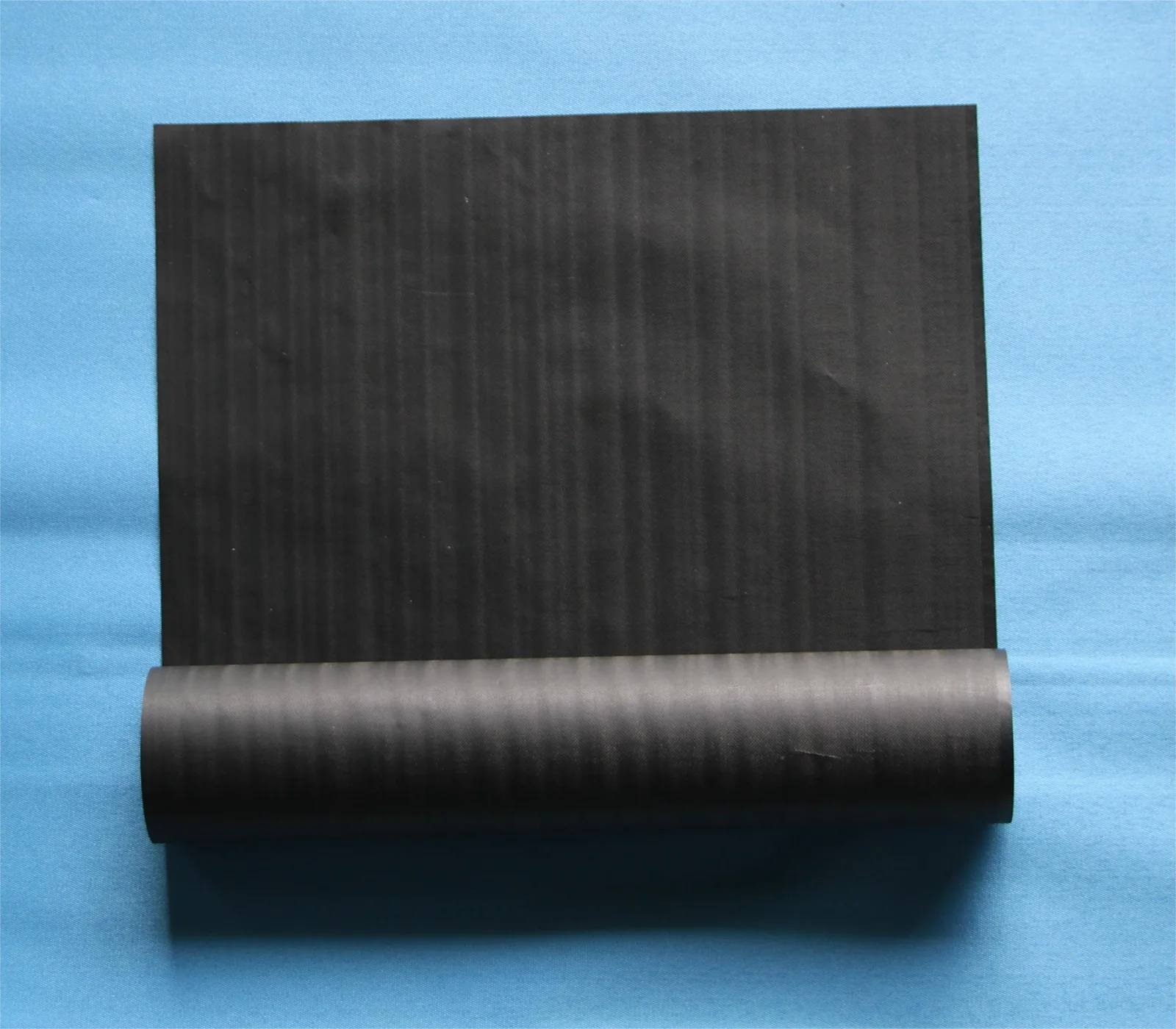

Graphene-coated black conductive cloth roll with release liner, ready for die-cutting
05

Nano Carbon & Graphene EMI Materials

Carbon-based shielding for designs where metal foil is too heavy, too stiff or too corrosion-prone. The graphene and nano-carbon series combines electrical conductivity with thermal spreading and absorption behaviour in a thin, light layer.

  • MaterialsGraphene series, nano carbon coatings
  • FunctionShielding, absorption, thermal-electrical coupling
  • CoatingWater-based, on flexible substrates
  • AdvantageLow weight, corrosion resistant, thin build
  • FormatRolls, sheets, custom coating service

Applications: Lightweight portable devices, battery modules, aerospace and UAV electronics, heat-plus-EMI combined layers.

Get Free Sample

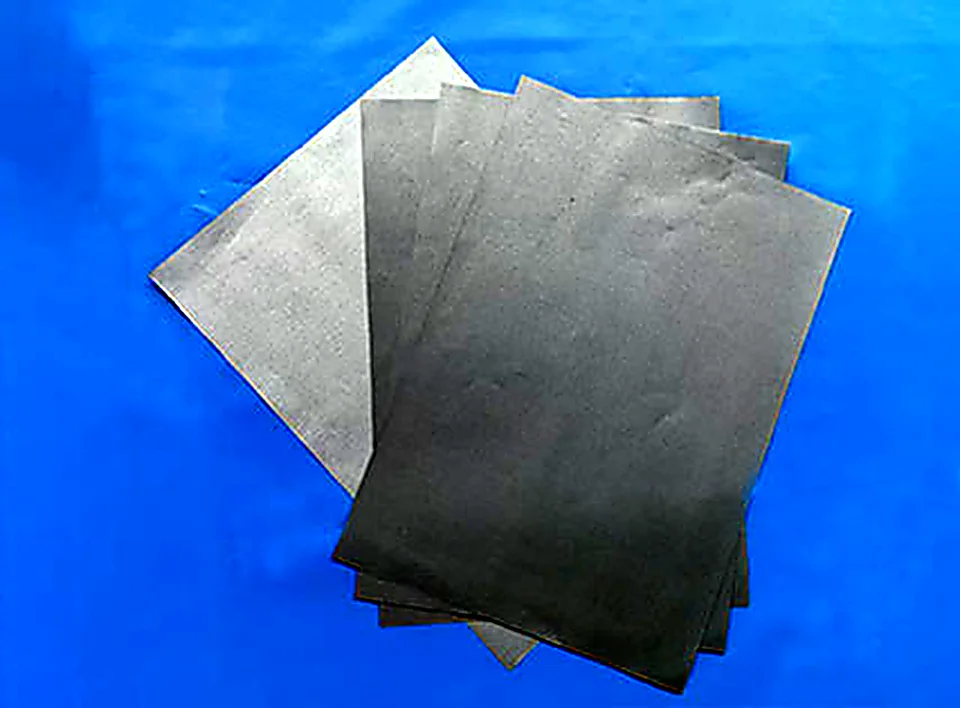

Single-sided grey insulating conductive cloth base material for conductive adhesive tapes
06

Shielding Tapes

Conductive fabric tape, copper foil tape, aluminium foil tape and double-sided conductive adhesive tapes. Used to close seams, bond shielding layers and create a low-impedance path to ground without redesigning the enclosure.

  • TypesFabric tape, copper foil tape, aluminium foil tape, double-sided conductive
  • AdhesiveConductive acrylic, custom coat weight
  • CarrierFabric, Cu foil, Al foil, non-woven
  • OptionsLow release force liners, high-temp grades
  • FormatLog rolls, slit widths, die-cut shapes

Applications: Seam and joint sealing, grounding paths, cable shielding repair, display and module assembly, EMC rework.

Get Free Sample
Also supplied

Functional Coatings from the Same Lab

The same water-based platform also produces standalone coating products for customers who coat in-house.

Conductive Coating

Water-based conductive coating for fabric, film and foil. Resistance tuned to target, strong adhesion on flexible substrates.

Absorbing Coating

Microwave absorbing coating for cavity resonance suppression and near-field noise control.

Flame-Retardant Coating

Water-based flame-retardant treatment on fabric and non-woven for enclosure and transport applications.

Insulating Coating

Dielectric and insulating coatings used where electrical isolation must sit next to a shielding layer.

Engineering reference

What We Can Adjust on a Coating

Use this as a checklist when you write to us — it tells our engineers exactly what to formulate against.

ParameterWhat we can doHow you specify it
Surface resistanceDown to ≤ 50 mΩ/sq; higher-resistivity grades also availableTarget value in mΩ/sq or Ω/sq + test method
Coating thicknessCustomised coating weight and build-upTarget thickness, or target resistance only
AdhesionFormulated for flexible substrates; resists flaking and delaminationCross-hatch / tape test standard you use
Abrasion & alcoholAbrasion-resistant and alcohol-resistant gradesRubs, solvent, number of cycles
Release forceLow release force for liner and die-cut performanceTarget release force range
TemperatureHigh-temperature resistant gradesContinuous and peak temperature
Surface feelAnti-fingerprint and low-glare finishesVisual / contact-angle requirement
ComplianceEnvironmental test reports and California Prop 65 documentationMarket and required documentation

Send us your specification Request TDS & reports

Not Sure Which Material Fits?

Describe the noise problem, the space available and the environment. We will propose a construction and send a sample for evaluation.
